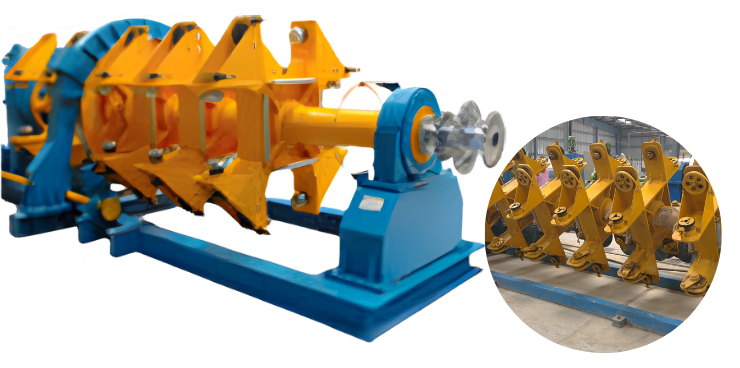

Stranding Machines – Precision Meets Performance

At KORS CABLES MACHINE MFG LLP, our specialize in designing and manufacturing both Rigid and Planetary Stranding Machines that deliver unmatched precision, reliability, and efficiency for modern wire and cable production. Engineered with advanced technology and robust materials, our machines are built to handle a wide range of applications in the wire and cable industry.

jay

Wide Range of Configurations

Our stranding machines are available in multiple configurations such as 19, 37, 54, 61, 91, and 127 bobbins, accommodating various production requirements and conductor sizes. These configurations are tailored to meet specific stranding applications, ensuring superior quality and uniform lay length throughout the process.

Engineering Excellence by KORS CABLES MACHINE MFG LLP

KORS CABLES MACHINE MFG LLP, an ISO 9001:2015 certified manufacturer, is a trusted name in the cable machinery industry. With decades of engineering experience and innovation, we provide world-class wire and cable machinery solutions that ensure durability, high-speed operation, and energy efficiency. Each stranding machine is meticulously tested and designed to meet international standards, helping our clients achieve superior productivity and consistent output.

Products Specifications:

Wire size Copper: 1.50 mm to 4.00 mm dia
Aluminium: 2.00 mm to 5.00 mm dia
Al.Alloy: 1.50 mm to 4.00 mm dia
Configuration 1 + 6 + 12 + 18 + 24 + 30
Bobbin Size 400 / 500 / 630 (DIN)
Cage Speed 300 / 250 / 200 / 150 / 100 rpm
Construction Steel fabricated rotor design supported on bearings at both ends.
Bobbin Holding On pintle
Pintle Actuation Motorised / Pneumatic / Manual (Optional)
Bobbin Loading Batch loading / Single bobbin loading
Bobbin Tension Uniform pay-off wire tension by individual touch arm
Haul-off unit Double wheel capstan up to 1200 mm - 3000 mm dia
Take-up reel size 2500 mm - 4500 mm flange dia
Drive AC / DC drive with mechanical shaft synchronization or individual drives with electronic synchronization of line
