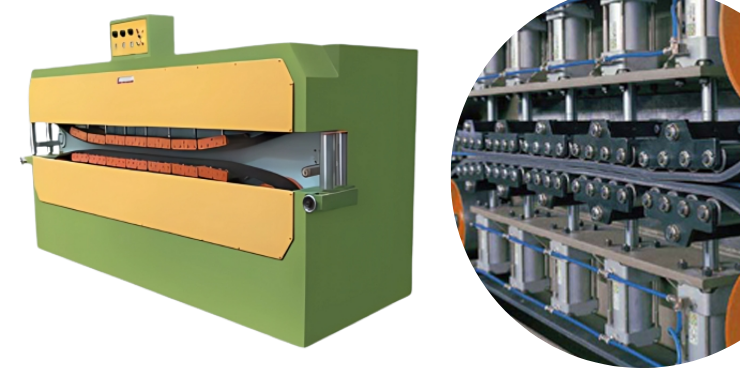

Belt Cater Pillar

Belt Center Pillar for Efficient Cable Manufacturing Operations

At KORS CABLES MACHINE MFG LLP, our Belt Center Pillars are designed to provide precise support and alignment for cables during manufacturing. They ensure smooth material handling, maintain cable tension, and prevent deformation, improving overall product quality and operational efficiency. Our Belt Center Pillars are constructed with high-grade materials and advanced engineering practices to withstand heavy-duty operations. The robust design guarantees stability, minimal maintenance, and long-term reliability in continuous production environments.

armoura

Precision Alignment for Smooth Cable Flow

The pillars are engineered to maintain perfect cable alignment, reducing friction, material wear, and the risk of twisting or tangling. This precision enhances the uniformity and integrity of the cable during production.

Advanced Design for Operator Safety and Convenience

Safety is a key feature, with ergonomically designed controls and secure mounting systems. The Belt Center Pillars allow easy handling and adjustment, ensuring safe operation for operators while maintaining production efficiency.

Products Specifications:

TYPE Traction Force max. (N) Cable Diameter Max. (mm) Passage max. (mm) Belt width (mm) Gripping length (mm) No.of cylindrical pair Speed max (M/min)
CTCP 30/3 3000 30 100 90 800 3 250
CTCP 40/4 3500 40 1000 4
CTCP 50/5 4000 50 1200 5
CTCP 70/6 5000 70 120 120 1600 6 150
CTCP 120/7 6000 100 1900 7
CTCP 180/8 8000 150 200 200 2200 8
CTCP 180/10 10000 2500 10 150
