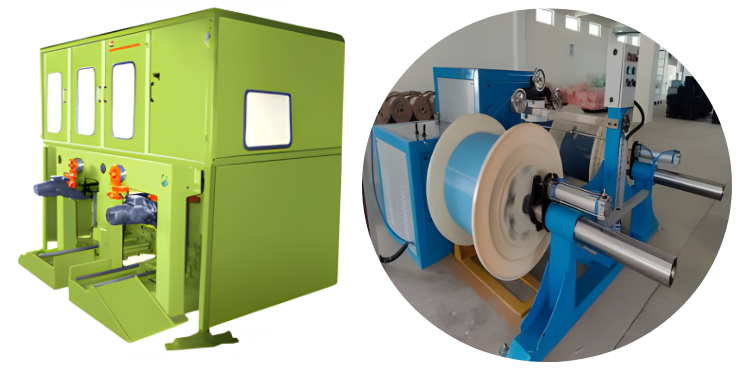

Automatic Dual Take-Up for High-Speed Cable Manufacturing Lines

KORS CABLES MACHINE MFG LLP offers the Automatic Dual Take-Up, engineered to efficiently handle continuous winding of cables and wires in high-speed production environments. This machine ensures consistent collection of conductor, cable, and rope materials, reducing downtime and enhancing operational efficiency.

armoura

Innovative Design for Smooth and Reliable Material Handling

The Automatic Dual Take-Up is designed with precision-engineered drums and advanced rotating mechanisms. This ensures smooth unwinding and winding of materials, prevents tangling, and maintains the structural integrity of the cables. The machine emphasizes operational reliability and reduced maintenance requirements.

Precision Control for Consistent Output and Quality

Each unit is equipped with advanced tension control, speed synchronization, and alignment systems. These features guarantee uniform winding, prevent cable deformation, and improve overall product quality, even under heavy-duty continuous operation.

Products Specifications:

Specification Details
Product Name Automatic Dual Take-Up
Type Fully automatic, high-speed pintle type dual take-up
Reel Diameter 400 mm, 500 mm, 630 mm
Reel Drive DC motors controlled by dancer and 4-Q thyristor converters
Traverse Unit Common traverse driven by variable speed PMDC gear motor with proximity switch limits
Emergency Brake Pneumatic disc brake mounted on each driven pintle
Automatic Sequence Pneumatically actuated lifting platforms, empty/full reel magazine, transfer stations
Changeover Process From full reel to empty reel without speed reduction, initiated by meter counter or manually
Control Accumulator Placed horizontally on take-up with pneumatic tension control
