Advanced Helical Taping Solution for High-Quality Cable Insulation

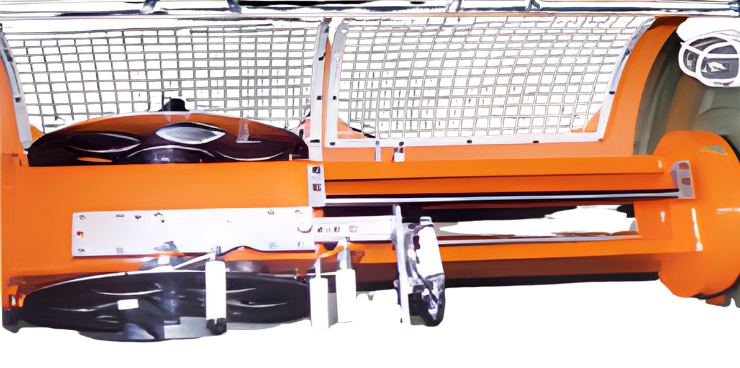

KORS CABLES MACHINE MFG LLP offers the Helical Taping Solution, designed to provide precise and consistent application of insulation and protective tapes on wires and cables. This machine ensures superior insulation quality, uniform coverage, and enhanced cable durability for industrial applications. Our Helical Taping Solution is engineered with high-precision rollers and adjustable guides to maintain consistent tape tension, alignment, and spiral pitch. This ensures flawless coverage, prevents tape wrinkles, and delivers a professional finish on all types of cables.

armoura

High-Speed Operation for Maximum Productivity

Equipped with advanced drive mechanisms and synchronization controls, the machine enables high-speed taping without compromising quality. It supports continuous production, increasing efficiency and reducing downtime in cable manufacturing lines.

Integrated Control Systems for Optimal Performance

The machine incorporates automated tension control, speed regulation, and programmable tape feed systems. These features allow for accurate helical application across varying cable diameters and material types while reducing material wastage.

Products Specifications:

Copper Taping Machine
Parameter Value
Type Tangential Type CTST-2
No. of pad 2 pads
Pad dia 500mm/400mm
Pad inner dia 100 mm / 120 mm
Width of the tape 20 mm to 80 mm
Thickness 0.05 to 0.5 mm copper/cotton/PVC
Braking Pneumatic braking
Head rpm Ranges from 500-1000 rpm
Drive 10 hp
Cable Passage 30 mm - 150 mm

Poducts Specifications:

Steel Taping Machine
Parameter Value
Model CTST 2 / 80 / 600 / 50 0
Type Tangential Type CTST 2
No. of Pads 2 Pads
Pad dia 800 mm/600 mm / 500
Width of the tape 20 mm to 80 mm
Lay Control Through PIV / electronic lay control
RPM 400- 500 rpm
Tension Adjustment Constant tension control by mechanical touch arm
Brake Disc braking
Cable Passage 50 mm - 150 mm
